Differences Between Polar and Nonpolar Capacitors

Jul. 10, 2023

The terms "polar" and "nonpolar" are used to describe different types of capacitors based on their internal construction and the behavior of their dielectric materials. Capacitors are electronic components that store electrical energy and are widely used in various electronic circuits. In this response, I will explain the difference between polar and nonpolar capacitors.


Polar Capacitors:

  • Construction: Polar capacitors, also known as electrolytic capacitors, are constructed with a polarized electrolyte that serves as the dielectric material. The electrolyte is typically a conductive liquid or gel, and it separates two conductive plates known as electrodes. One electrode is coated with a thin layer of oxide, which acts as the dielectric.


  • Polarity: Polar capacitors are polarized, meaning they have a positive and negative terminal. The polarity is a result of the electrolyte and the oxide layer, which allow the capacitor to store energy in one direction only. Connecting a polar capacitor in reverse polarity can result in damage or failure.


  • High Capacitance: Polar capacitors are known for their high capacitance values, making them suitable for applications that require relatively large capacitance. They are often used in power supply circuits, audio systems, and other applications that require energy storage or filtering.


  • Voltage Ratings: Polar capacitors have specified voltage ratings that indicate the maximum voltage they can handle. Exceeding the voltage rating can lead to capacitor failure, leakage, or even explosion. It is crucial to select a polar capacitor with a voltage rating that exceeds the maximum voltage in the circuit.

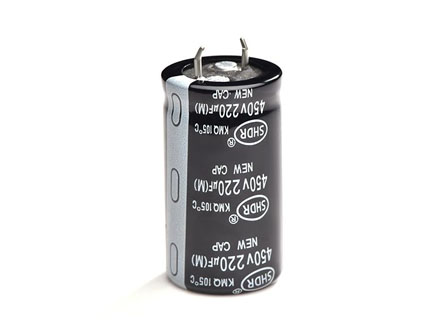

Snap-In Electrolytic Capacitor

 Snap-In Electrolytic Capacitor

Types of Polar Capacitors: There are two common types of polar capacitors:

  • a. Aluminum Electrolytic Capacitors: These capacitors use aluminum foils as the electrodes and an electrolyte composed of a conducting liquid or gel. Aluminum electrolytic capacitors have high capacitance values and are commonly used in power supply circuits, audio amplifiers, and other applications that require high capacitance.


  • b. Tantalum Capacitors: Tantalum capacitors use tantalum metal as the electrodes and a solid electrolyte, usually manganese dioxide, for the dielectric. They are known for their high capacitance per volume ratio and stable electrical characteristics. Tantalum capacitors are commonly used in portable electronic devices, telecommunications equipment, and other applications where compact size and reliability are important.


Nonpolar Capacitors:

  • Construction: Nonpolar capacitors, also known as non-electrolytic capacitors, are constructed with dielectric materials that do not have polarity restrictions. The dielectric material can be made of various materials such as ceramic, plastic films, glass, or paper.


  • Polarity: Nonpolar capacitors do not have polarity restrictions, meaning they can be connected in either direction in a circuit without damaging the component. This feature provides flexibility in circuit design and allows for easier installation.


  • Capacitance Range: Nonpolar capacitors have a wide range of capacitance values available, from low picofarad values to high microfarad values. They can be used in a variety of applications, from high-frequency filtering to energy storage in low-power circuits.


  • Voltage Ratings: Nonpolar capacitors also have specified voltage ratings, similar to polar capacitors, to indicate their maximum voltage handling capabilities. Selecting a nonpolar capacitor with an appropriate voltage rating is crucial to ensure reliable operation and avoid capacitor failure.


Radial Lead Capacitor

 Radial Lead Capacitor

Types of Nonpolar Capacitors: There are several types of nonpolar capacitors, including:

  • a. Ceramic Capacitors: Ceramic capacitors use a ceramic material as the dielectric. They are available in a wide range of capacitance values, voltage ratings, and sizes. Ceramic capacitors are commonly used in decoupling, filtering, and high-frequency applications.


  • b. Film Capacitors: Film capacitors use a plastic film as the dielectric material. They offer excellent stability, low leakage current, and high voltage ratings. Film capacitors are widely used in audio equipment, power factor correction circuits, and motor-run applications.


  • c. Glass Capacitors: Glass capacitors use a glass material as the dielectric. They provide good stability, low loss, and high voltage ratings. Glass capacitors are commonly used in high-power applications, such as inverter circuits and high-voltage power supplies.


  • d. Paper Capacitors: Paper capacitors use paper impregnated with oil or wax as the dielectric material. They have limited capacitance values and are mainly used in low-voltage applications or as coupling capacitors in audio circuits.


In summary, the key difference between polar and nonpolar capacitors lies in their construction, polarity restrictions, and types of dielectric materials used. Polar capacitors, such as aluminum electrolytic capacitors and tantalum capacitors, have polarity restrictions and are commonly used for high capacitance applications. Nonpolar capacitors, such as ceramic capacitors, film capacitors, glass capacitors, and paper capacitors, do not have polarity restrictions and offer flexibility in circuit design. They can be used in a wide range of capacitance values and applications, depending on the specific dielectric material used.
